Container Dimensions

General Purpose

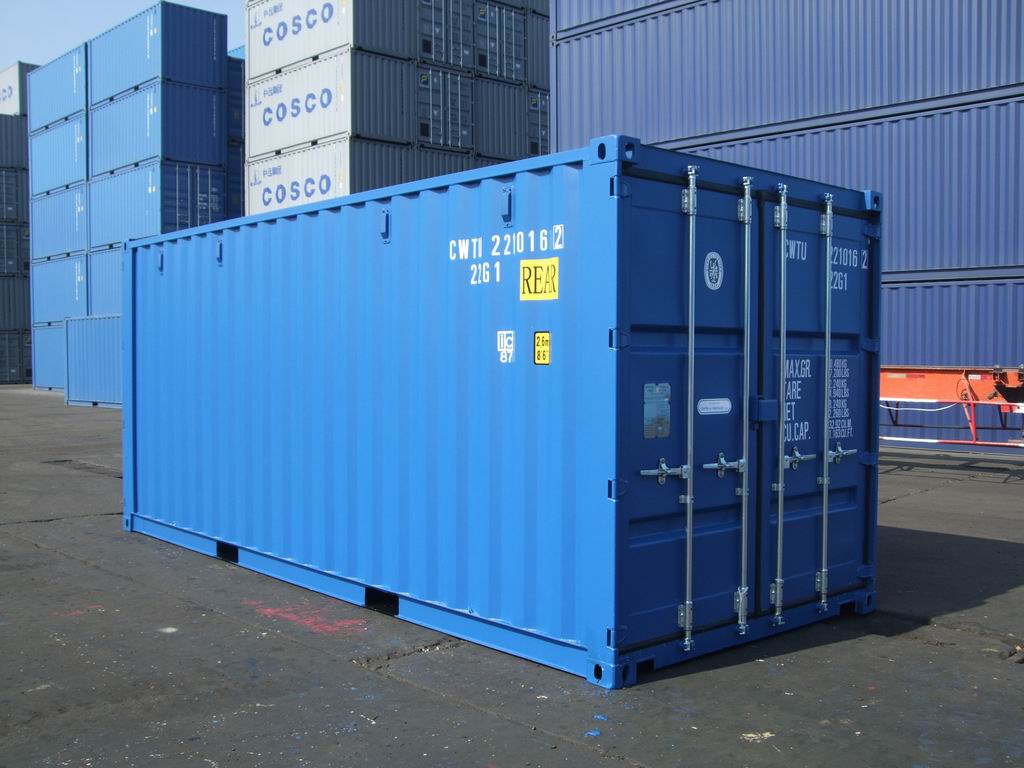

	General Purpose 20' x 8' x 8'6"
Steel Millimetres Feet Internal Dimensions Length 5,898   Width 2,352   Height 2,391   Door Opening Width 2,340   Height 2,280     Kilograms Pounds Weight Max Gross 24,000 52,910 Tare 2,280 5,090 Max Payload 21,720 47,885   Cube Metres Cube Feet Internal Capacity 33.2 1,171

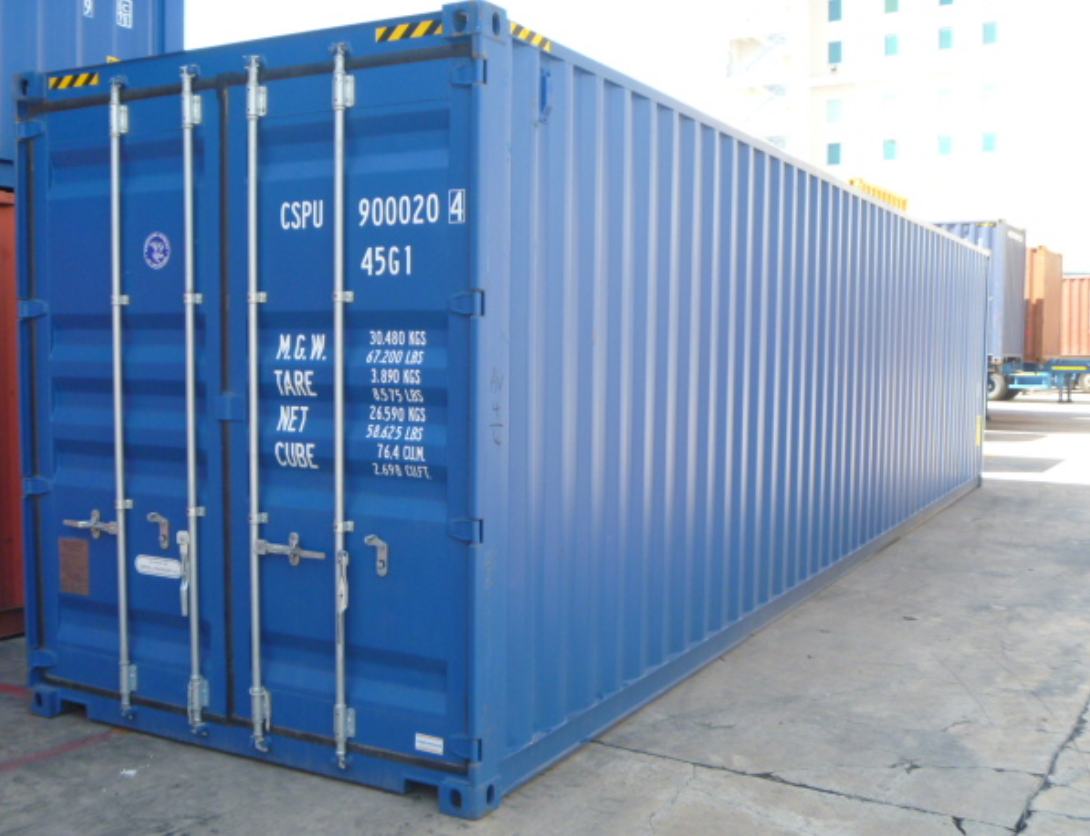

General Purpose 40' x 8' x 8'6"

Steel Aluminium Millimetres Feet Millimetres Feet Internal Dimensions Length 12,040 39'5.3" 12,021 39'5.3" Width 2,353 7'8.5" 2,335 7'8.9" Height 2,383 7'9.7" 2,360 7'8.9" Door Opening Width 2,340 7'8" 2,337 7'7.9" Height 2,280 7'5.8" 2,271 7'5.4"   Kilograms Pounds Kilograms Pounds Weight Max Gross 30,480 67,200 32,000 70,040 Tare 3,830 8,450 3,170 6,990 Max Payload 26,650 58,630 28,830 63,500   Cube Metres Cube Feet Cube Metres Cube Feet Internal Capacity 67.7 2,390 67.7 2,380

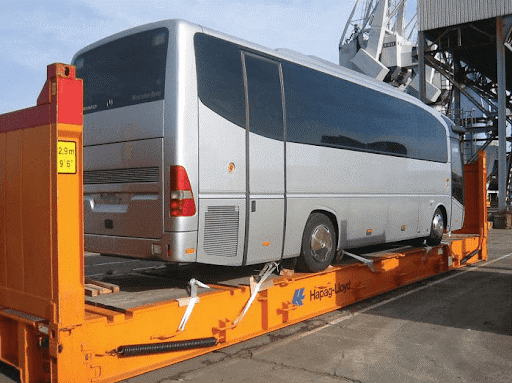

Flatracks

	Flatracks 20' x 8' x 8'6"
Steel Millimetres Feet Internal Dimensions Length 5,727 18'9.4" Width 2,240 7'4.1" Height (Unfolded) 2,170 7'1.3" Height (Folded) 420 1'4.6"   Kilograms Pounds Weight Max Gross 30,480 66,140 Tare 2,950 6,500 Max Payload 26,650 60,690   Cube Metres >Cube Feet Internal Capacity 27.9 986

	Flatracks 40' x 8' x 8'6"
Steel Millimetres Feet Internal Dimensions Length 12,024 39'5.6" Width 2,240 7'4.1" Height (Unfolded) 2,034 6'8.1 Height (Folded) 570 1'10.4"   Kilograms Pounds Weight Max Gross 45,000 88,180 Tare 5,530 12,190 Max Payload 39,470 87,020   Cube Metres Cube Feet Internal Capacity 54.8 1,936

Refrigerated

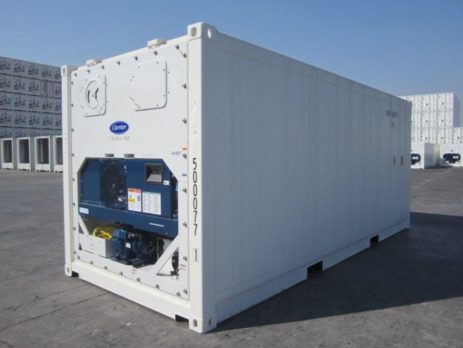

	Refrigerated 20' x 8' x 8'6"
Aluminium Millimetres Feet Internal Dimensions Length 5,455 17'11" Width 2,294 7'6.2" Height (Nominal)  2,288   7'6" Height (Usable) 2,188 7'2" Door Opening Width 2,268 7'5.3" Height 2,215 7'3.1"   Kilograms Pounds Weight   Max 34,000Gross 24,000 52,800 Tare 2,950 6,503 Max Payload 21,050 46,407   Cube Metres Cube Feet Internal Capacity Nominal  28.6  1,010  Usable 27.4 967

		MGSS
		Millimetres	Feet
Internal Dimensions	Length	5,461	17'11.2"
	Width	2,290	7'6
	Height (Nominal)	2,288	7'6"
	Height (Usable)	2,288	7'6"
Door Opening	Width	2,294	7'6.2"
	Height	2,278	7'5.5"
		Kilograms	Pounds
Weight	Max 34,000Gross	30,480	67,200
	Tare	3,190	7,033
	Max Payload	27,290	60,167
		Cube Metres	Cube Feet
Internal Capacity	Nominal	28.6	1,010
	Usable	27.3	967

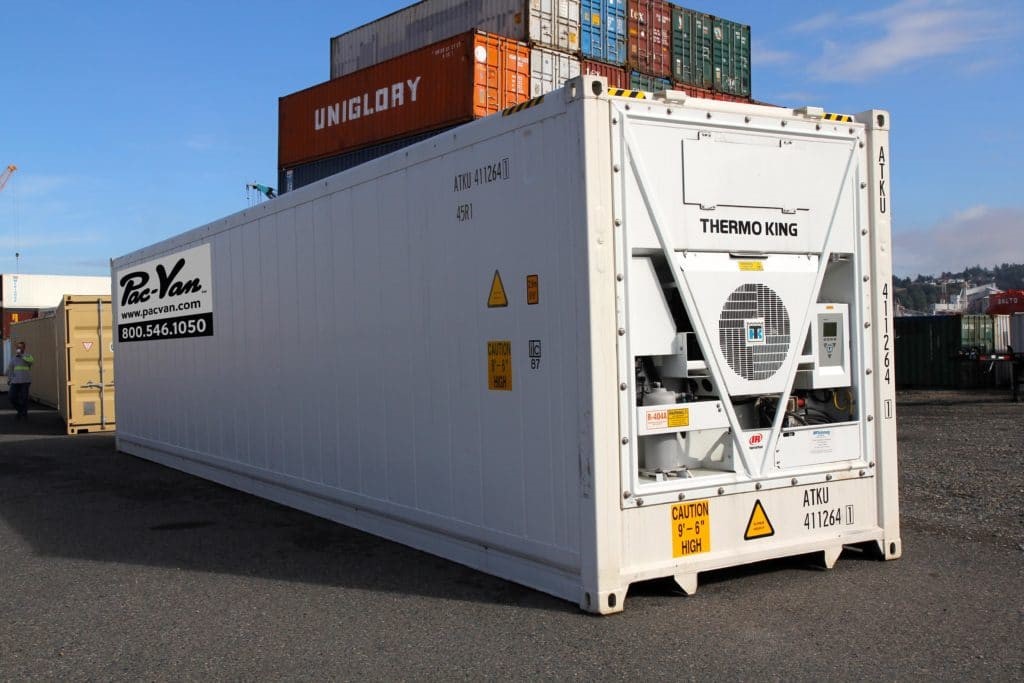

Refrigerated 40' x 8' x 9'6"

Aluminium Millimetres Feet Internal Dimensions Length 11,569 37'11.4" Width 2,294 7'6.2" Height (Nominal) 2,540 8'4"  Height (Usable) 2,440 8' Door Opening Width 2,294 7'6.2" Height 2,558 8'4.7"   Kilograms Pounds Weight (Max Gross Weight 34 Tonne) Max Gross 34,000  74,961  Tare  4,430  9,767  Max Payload 29,570  65,194  Weight (Max Gross Weight 30 Tonne) Max Gross 30,480 67,200 Tare 4,420 9,750 Max Payload 26,060 57,450   Cube Metres Cube Feet Internal Capacity Nominal 67.4 2,380  Usable  64.8 2,289

		MGSS
		Millimetres	Feet
Internal Dimensions	Length	11,559	37'11"
	Width	2,290	7'6"
	Height (Nominal)	2,546	8'4.2"
	Height (Usable)	2,446	8'0.2"
Door Opening	Width	2,294	7'6.2"
	Height	2,558	8'4.7"
		Kilograms	Pounds
Weight	Max 34,000Gross	32,000	70,551
	Tare	4,545	10,020
	Max Payload	27,455	60,531
		Cube Metres	Cube Feet
Internal Capacity	Nominal	67.4	2,380
	Usable	64.8	2,298
